Access-list Questions

Question 1

Explanation

Remember, for the wildcard mask, 1′s are I DON’T CARE, and 0′s are I CARE. So now let’s analyze a simple ACL:

access-list 1 permit 172.23.16.0 0.0.15.255

Two first octets are all 0’s meaning that we care about the network 172.23.x.x. The third octet of the wildcard mask, 15 (0000 1111 in binary), means that we care about first 4 bits but don’t care about last 4 bits so we allow the third octet in the form of 0001xxxx (minimum:00010000 = 16; maximum: 0001111 = 31).

The fourth octet is 255 (all 1 bits) that means I don’t care.

Therefore network 172.23.16.0 0.0.15.255 ranges from 172.23.16.0 to 172.23.31.255.

Now let’s consider the wildcard mask of 0.0.0.254 (four octet: 254 = 1111 1110) which means we only care the last bit. Therefore if the last bit of the IP address is a “1” (0000 0001) then only odd numbers are allowed. If the last bit of the IP address is a “0” (0000 0000) then only even numbers are allowed.

Note: In binary, odd numbers are always end with a “1” while even numbers are always end with a “0”.

Therefore in this question, only the statement “permit 10.0.0.1 0.0.0.254” will allow all odd-numbered hosts in the 10.0.0.0/24 subnet.

Question 2

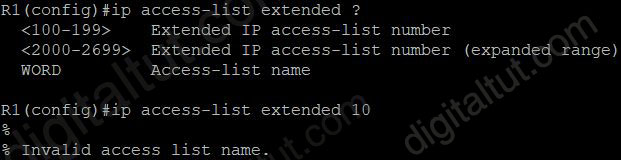

Question 3

Explanation

The syntax of an extended ACL is shown below:

access-list access-list-number {permit | deny} protocol source {source-mask} destination {destination-mask} [eq destination-port]

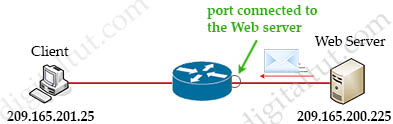

According to the request in this question, we must apply the ACL on the port connected to the Web Server and with inbound direction. So it can only filter traffic sent from the Web Server to the Client. Please notice that the Client communicate to the Web Server with destination port of 80 but with random source port. So the Web Server must answer the Client with this random port (as the destination port) -> Therefore the destination port in the required ACL must be ignored. Also the Web Server must use port 80 as its source port.

So the structure of the ACL should be: permit tcp host <IP-address-of-Web-Server> eq 80 host <IP-address-of-Client>

-> Answer C is correct.

Question 4

Explanation

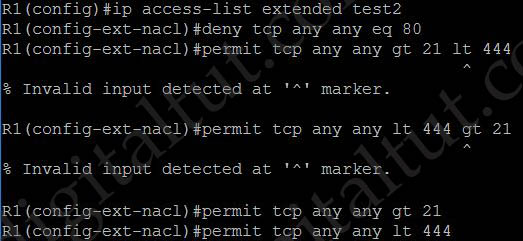

Although the statement “permit tcp any any gt … lt …” seems to be correct but in fact it is not. Each ACL statement only supports either “gt” or “lt” but not both:

In fact answer C is only correct if the order of the statement is in reverse order. Answer D is only correct if the first statement is “Deny tcp any any eq 80″.

Question 5

Explanation

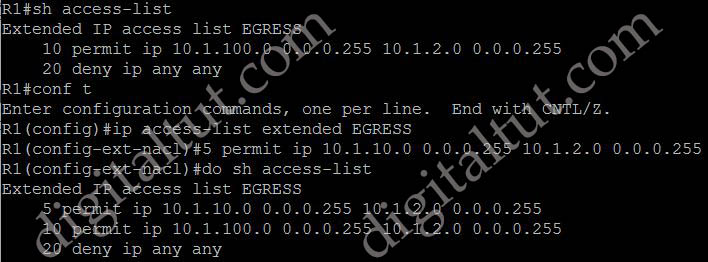

We can insert a line (statement) between entries into an existing ACL by a number in between.

So what will happen if we just enter a statement without the number? Well, that statement would be added at the bottom of an ACL. But in this case we already had an explicit “deny ip any any” statement so we cannot put another line under it.
