Use Distribute-list to filter Routing Updates in BGP

March 2nd, 2012 in Basic Labs Go to comments

In this lab we will learn how to use distribute-list to filter unwanted routes in BGP. Below is the topology of this lab:


IOS used in this lab: c3640-jk9s-mz.124-16.bin

Objectives of this lab:
+ Task 1: Configure EBGP on AS 1, AS 23, AS 4 and configure IBGP between R2 & R3 (AS23), also advertise loopback 0 interface on R1 so that all the routers learn about this network.
+ Task 2: Use a distribute-list to filter out network 1.1.1.0

Let’s start our lab!

Task 1 has been mentioned in detail in BGP next-hop-self, community no-export & send-community Lab so I just post the configuration here:

Configure IP addresses on all interfaces

R1(config)#interface f0/0
R1(config-if)#ip address 12.12.12.1 255.255.255.0
R1(config-if)#no shutdown
R3(config)#interface f0/0
R3(config-if)#ip address 23.23.23.3 255.255.255.0
R3(config-if)#no shutdown
R3(config)#interface f1/0
R3(config-if)#ip address 34.34.34.3 255.255.255.0
R3(config-if)#no shutdown
R2(config)#interface f0/0
R2(config-if)#ip address 12.12.12.2 255.255.255.0
R2(config-if)#no shutdown
R2(config)#interface f1/0
R2(config-if)#ip address 23.23.23.2 255.255.255.0
R2(config-if)#no shutdown
R4(config)#interface f0/0
R4(config-if)#ip address 34.34.34.4 255.255.255.0
R4(config-if)#no shutdown

Configure EBGP & IBGP

R1(config)#router bgp 1
R1(config-router)#neighbor 12.12.12.2 remote-as 23
R3(config)#router bgp 23
R3(config-router)#neighbor 23.23.23.2 remote-as 23
R3(config-router)#neighbor 34.34.34.4 remote-as 4
R3(config-router)#neighbor 23.23.23.2 next-hop-self
R2(config)#router bgp 23
R2(config-router)#neighbor 12.12.12.1 remote-as 1
R2(config-router)#neighbor 23.23.23.3 remote-as 23
R2(config-router)#neighbor 23.23.23.3 next-hop-self
R4(config)#router bgp 4
R4(config-router)#neighbor 34.34.34.3 remote-as 23

Advertise loopback0 on R1 to other routers

R1(config)#interface loopback0
R1(config-if)#ip address 1.1.1.1 255.255.255.0
R1(config-if)#exit
R1(config)#router bgp 1
R1(config-router)#network 1.1.1.0 mask 255.255.255.0

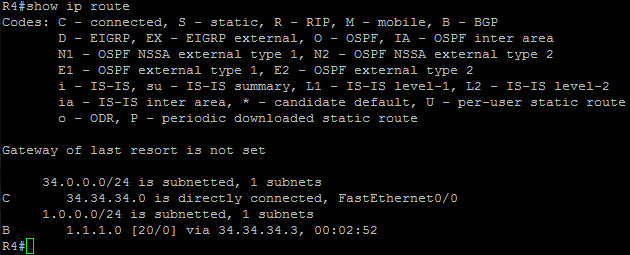

Now we can see 1.1.1.0/24 on all routers. For example on R4 we see:



Task 2: Use distribute-list to filter out network 1.1.1.0

On R2 configure an access-list and apply it in the distribute-list under BGP mode.

R2(config)#access-list 1 deny 1.1.1.0 0.0.0.255
R2(config)#access-list 1 permit any
R2(config)#router bgp 23
R2(config-router)#neighbor 12.12.12.1 distribute-list 1 in

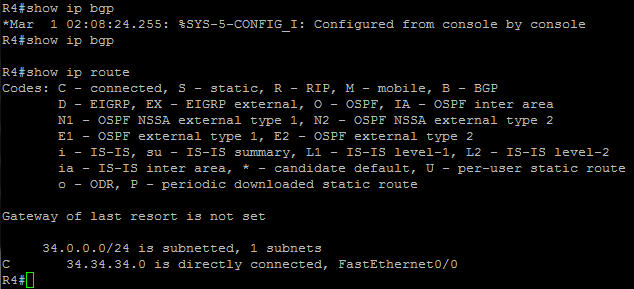

Now network 1.1.1.0 disappears in both BGP routing table and routing table of R4


You can check to see the access-list 1 has been matched with the “show access-list 1” command:


Another way to complete this task is to apply the distribute-list on R3

R3(config)#access-list 1 deny 1.1.1.0 0.0.0.255
R3(config)#access-list 1 permit any
R3(config)#router bgp 23
R3(config-router)#neighbor 34.34.34.4 distribute-list 1 out

In practical we should apply the distribute-list on R2 so that routers in our company don’t need to learn about that route.
